PaperFit: Vision-in-the-Loop Typesetting Optimization for Scientific Documents

A closed-loop agent that turns compilable LaTeX into publication-ready PDFs by sensing, repairing, and verifying visual layout defects.

Bihui Yu · Xinglong Xu · Junjie Jiang · Jiabei Cheng · Caijun Jia · Siyuan Li · Conghui He · Jingxuan Wei · Cheng Tan

UCAS · Shanghai AI Laboratory · SJTU

Paper GitHub Dataset

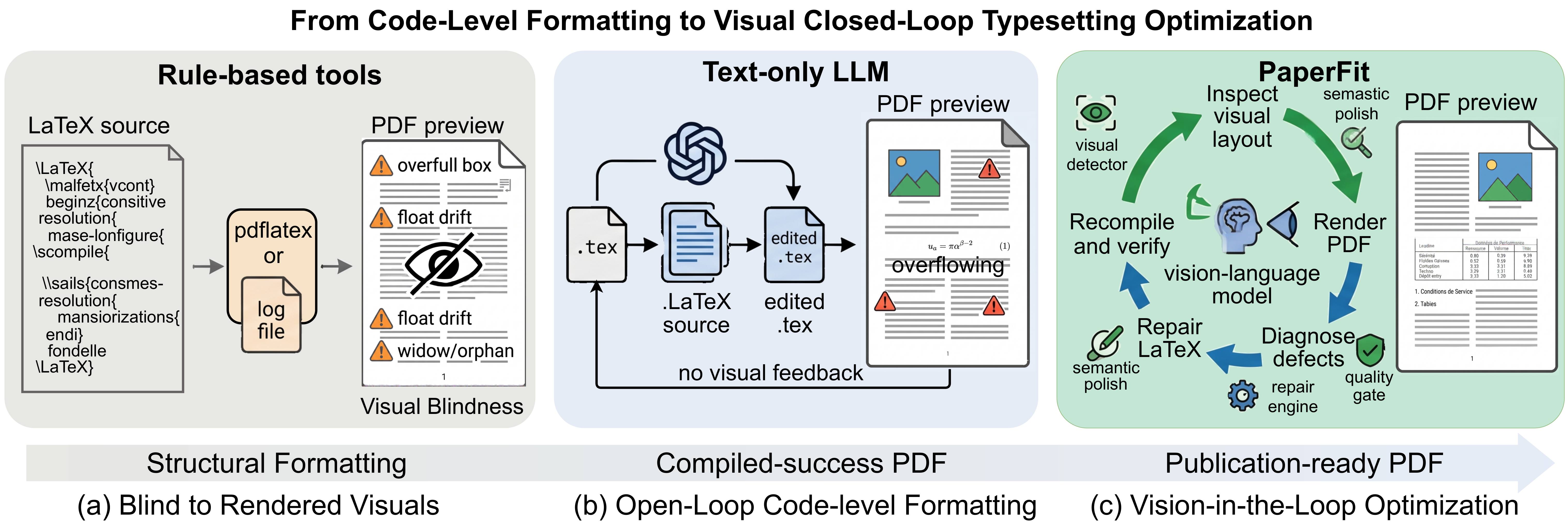

Comparison of rule-based, text-only LLM, and PaperFit visual closed-loop approaches — Rule/log tools are visually blind. Text-only LLMs edit without seeing consequences. PaperFit closes the rendered-page feedback loop.

200Benchmark Papers

10Venue Templates

13Defect Strategies

80.5%Page-Budget Hit

Compiling a LaTeX document is not the same as producing a publication-ready PDF. Visual defects — orphan lines, misplaced floats, oversized tables, sparse trailing pages — require spatial judgment that compile logs cannot provide. PaperFit formalizes Visual Typesetting Optimization (VTO): a closed-loop agent that senses defects from rendered page images, applies layout-native repairs, and accepts results only when compile, render, content-preservation, and page-budget gates all pass. We release PaperFit-Bench: 200 real papers across 10 venue templates, perturbed with 13 defect strategies at three difficulty levels.

How PaperFit Works

Each iteration fuses four evidence layers — source code, compile logs, PDF metadata, and rendered page images — into a structured diagnosis, then applies constrained repairs verified by quality gates.

PaperFit pipeline: evidence collection, diagnosis, constrained repair, and visual verification — Multi-source evidence feeds diagnosis, repair planning, and checklist-gated visual verification.

Sense

Fuse source, log, PDF, and page-image evidence into structured defect records with category, location, and severity.

Act

Apply layout-native repairs: float re-anchoring, equation splitting, table restructuring, template-safe figure widths.

Verify

Recompile and re-render; the gatekeeper returns DONE, CONTINUE, or BLOCKED based on hard constraints and residual defects.

Results

PaperFit achieves perfect compile/render success and the highest page-budget compliance. The structured gate mechanism is the key difference over naive visual iteration.

            100%
            Compile & Render Success


            89.5%
            Visual Win Rate


            80.5%
            Page-Budget Hit Rate


VisualMR reaches 97.5% compile/render but only 54.9% page-budget hit. PaperFit adds defect taxonomy, constrained repair policy, and acceptance gates that make the visual loop reliable.

Main Comparison

Method	Compile	Render	VLM Score	Win Rate	Program	Page Hit
Perturbed (baseline)	0.580	0.820	1.828	—	3.634	0.375
RuleLog	0.520	0.760	2.184	0.380	3.340	0.444
TextST	0.585	0.585	1.852	0.280	2.574	0.453
TextMR	0.610	0.610	2.160	0.425	2.743	0.623
VisualST	0.625	0.625	1.874	0.295	2.768	0.456
VisualMR	0.975	0.975	2.801	0.650	4.579	0.549
PaperFit	1.000	1.000	3.391	0.895	4.579	0.805

Model Backend Comparison (20 representative cases)

LLM Backend	Compile	Render	VLM	Win	Page Hit
GPT-5.4	100%	100%	3.656	95%	95%
Claude Opus 4.6	100%	100%	3.548	90%	100%
DeepSeek-V4 Pro	95%	100%	3.521	95%	100%
MiMo-v2.5-pro	100%	100%	3.652	100%	95%

Backend variation is smaller than the workflow gain over VisualMR, confirming PaperFit is not a single-model artifact.

PaperFit-Bench

A full-paper layout repair benchmark built from real arXiv projects, each paired with a perturbed source and disturbance manifest.

200 real academic papers from arXiv
10 venue templates: AAAI, ACM MM, CVPR/ICCV, ECCV, ICLR, ICML, IEEE Trans, IJCAI, IJCV, NeurIPS

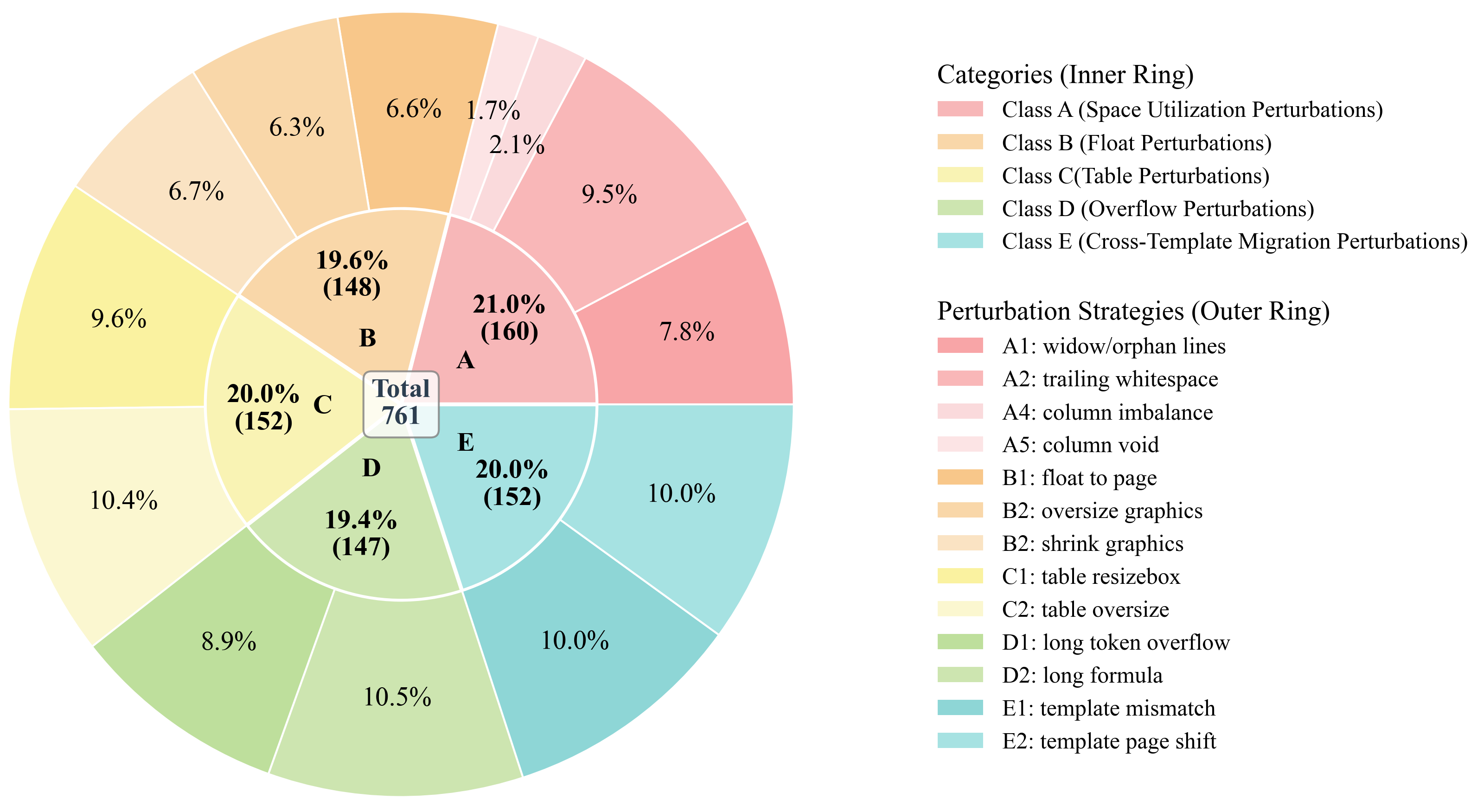

5 defect families: space utilization, float placement, table width, overflow, cross-template migration
13 concrete injection strategies with programmatic validation
3 difficulty tiers: Easy (60), Medium (80), Hard (60)
Visual evaluation with human/VLM correlation validated

Full Benchmark Comparison with Prior Work

Benchmark	Task	Visual Eval	Multi-modal	Iterative
Im2Latex-100K	Formula reconstruction	No	No	No
TeXpert	LaTeX code generation	No	No	No
RoDLA	Layout robustness	Partial	Yes	No
LATTE	Element-level refinement	No	Yes	Yes
PaperFit-Bench	Visual typesetting repair	Yes	Yes	Yes

Visual Examples

These cases show why compilable output is not enough — VisualMR often renders successfully but leaves the layout defect unresolved. PaperFit repairs the defect and validates the whole document.

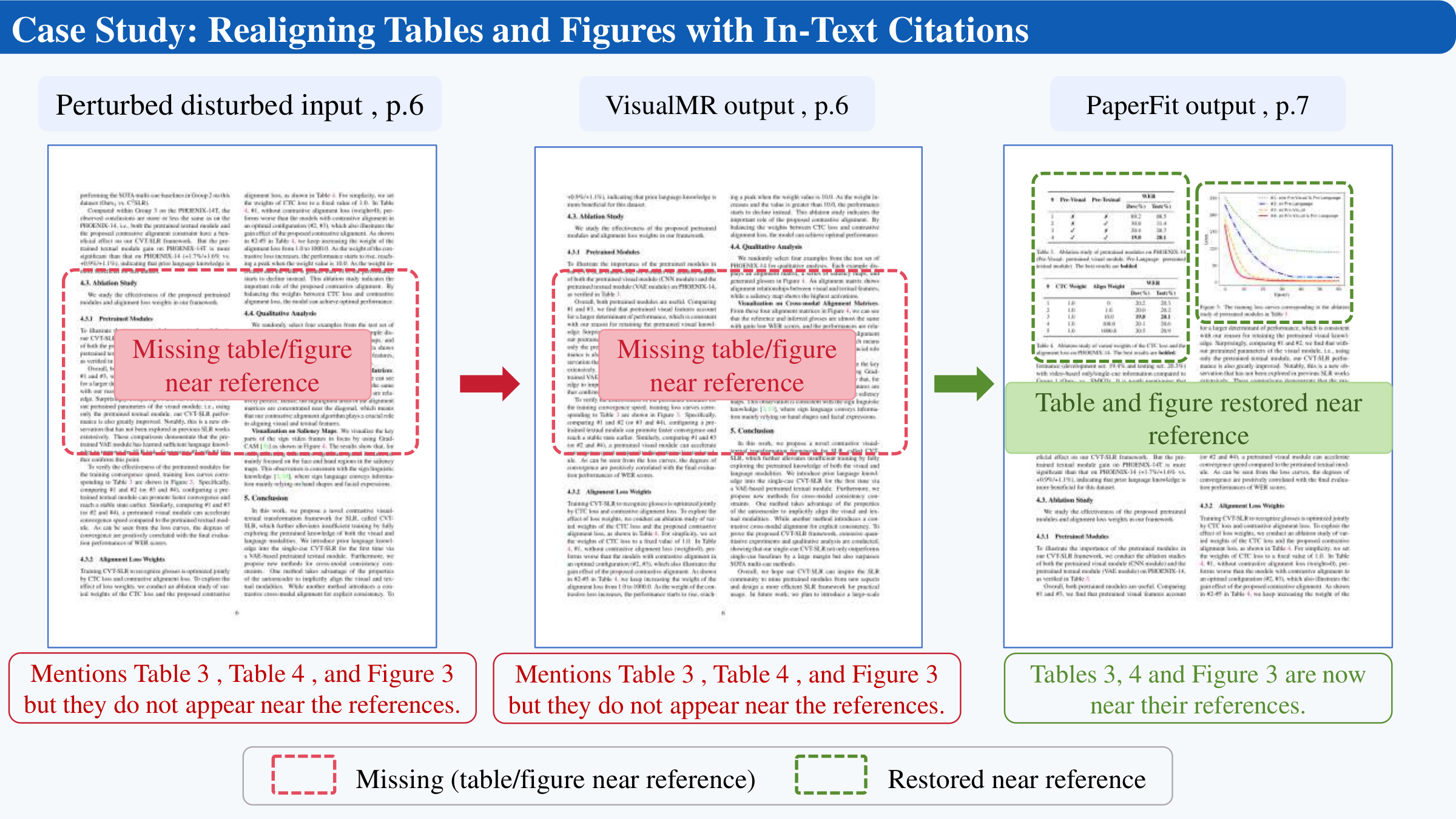

Case 1: table and figure realignment near textual references — Tables and figures restored near their textual references while satisfying the target page budget.

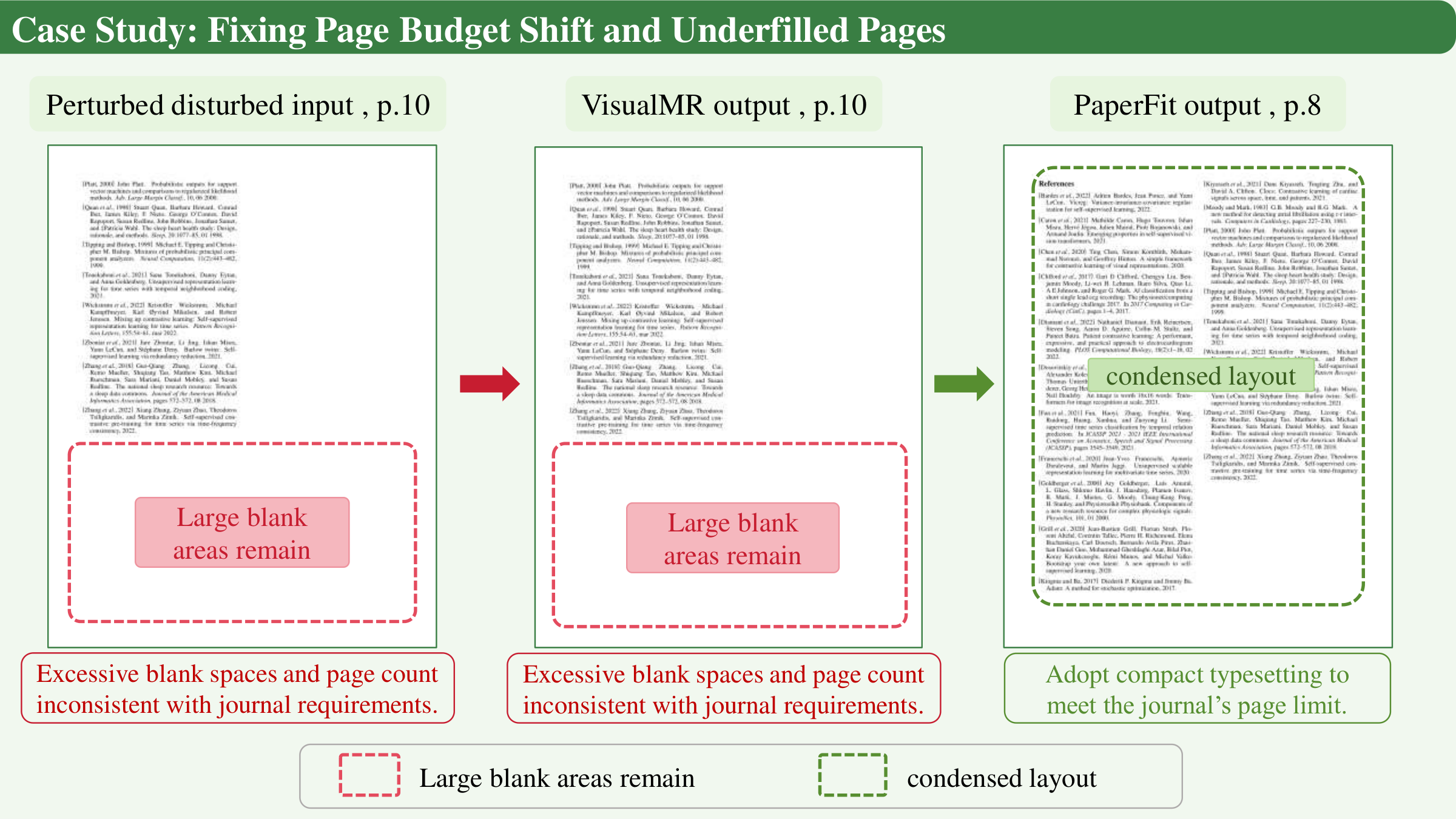

Case 2: page budget repair by compacting blank reference pages — Blank reference pages compacted to meet the journal page limit without deleting content.

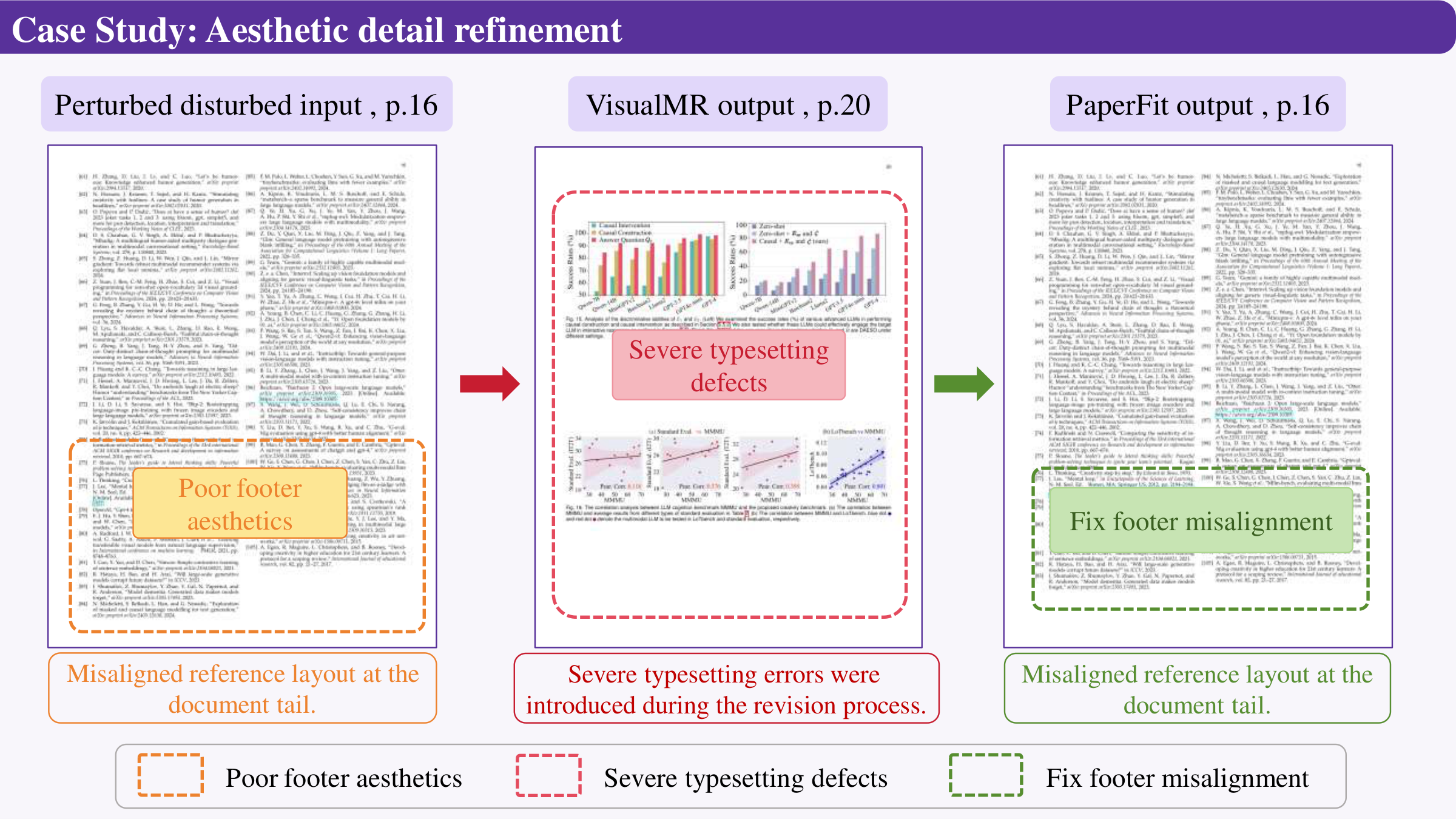

Case 3: footer and reference-tail defect repair — Footer and reference-tail defects repaired without introducing new typesetting artifacts.

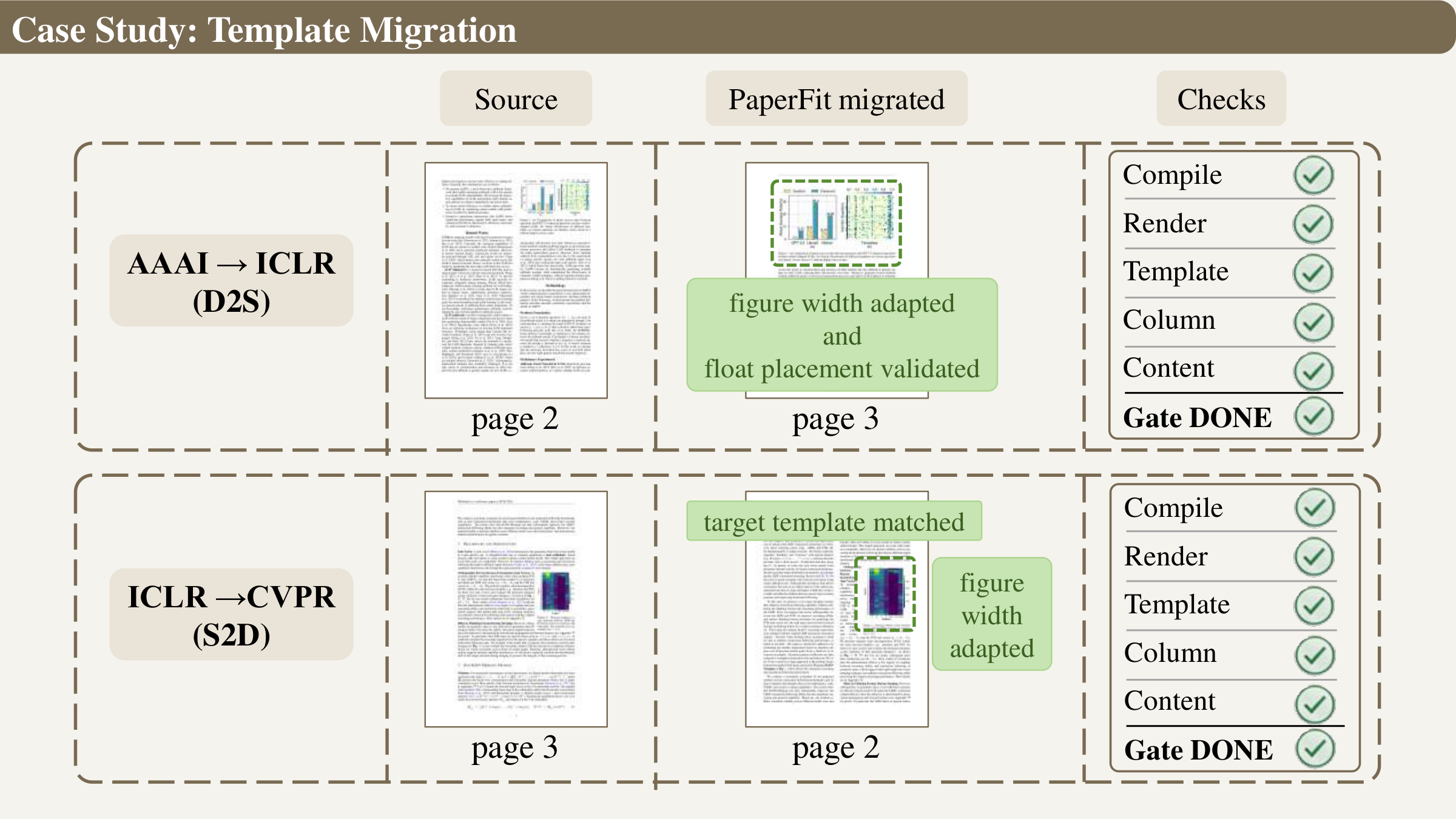

Case 4: template migration with figure width adaptation — Template migration adapts figure widths, validates float placement, and passes all quality gates.

Where PaperFit Still Fails

Hard constraints alone do not guarantee success. Highly complex multi-defect cases still challenge page-budget control.

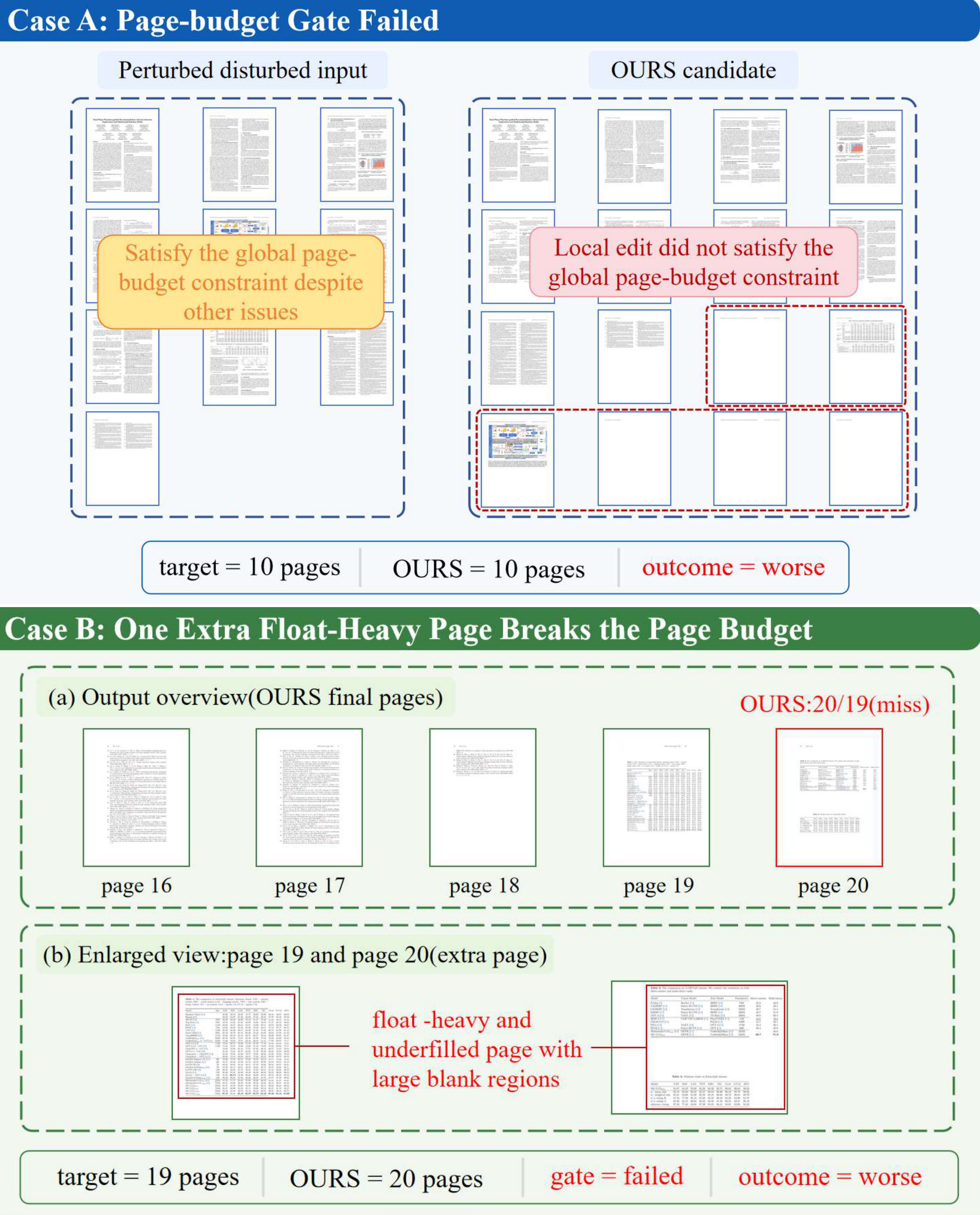

Page-budget violation: local repairs creating sparse trailing pages — Global page-budget failures: local repairs can still produce sparse trailing pages or one extra float-heavy page.

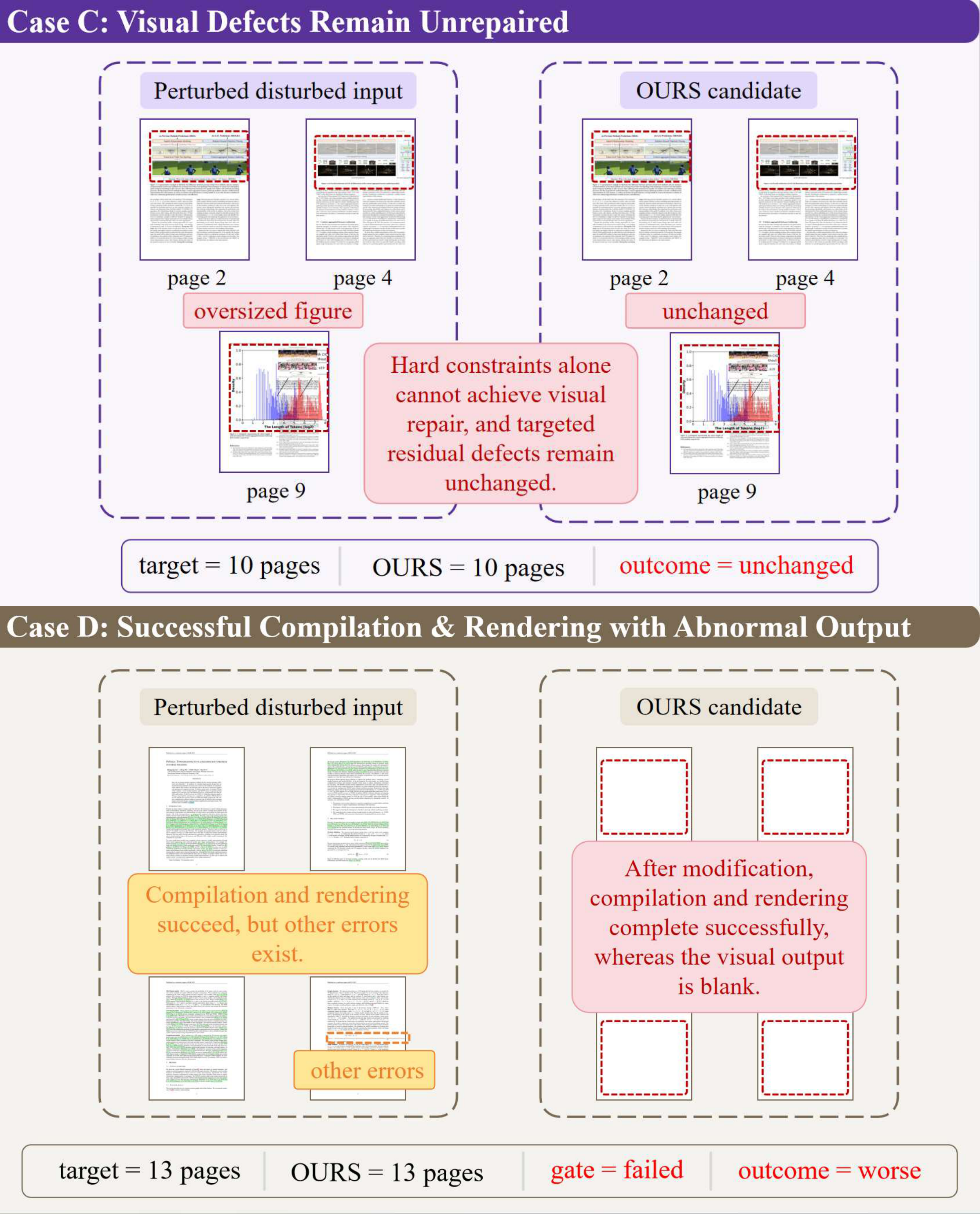

Residual visual defects despite passing compile/render gates — Residual visual defects: compile, render, and page count pass but the intended visual repair remains incomplete.

Citation

@article{yu2026paperfit,
  title={PaperFit: Vision-in-the-Loop Typesetting Optimization for Scientific Documents},
  author={Yu, Bihui and Xu, Xinglong and Jiang, Junjie and Cheng, Jiabei and Jia, Caijun and Li, Siyuan and He, Conghui and Wei, Jingxuan and Tan, Cheng},
  journal={arXiv preprint arXiv:2605.10341},
  year={2026}
}
